OpenAPI Scan

OpenAPI Scan analyzes REST APIs for security vulnerabilities. Upload an OpenAPI (Swagger) specification file in YAML or JSON format that defines your API endpoints, operations, and request/response formats. The scanner discovers and tests all exposed endpoints for common vulnerabilities.

Prerequisites

An OpenAPI definition file (.json, .yaml, or .yml) for the target API.
The OpenAPI file must accurately reflect the deployed API for complete and reliable scan results.

Adding a Scan

From the sidebar, click OpenAPI Scans. If no scans exist, click Start First Scan. Otherwise, click New Scan in the top-right corner.

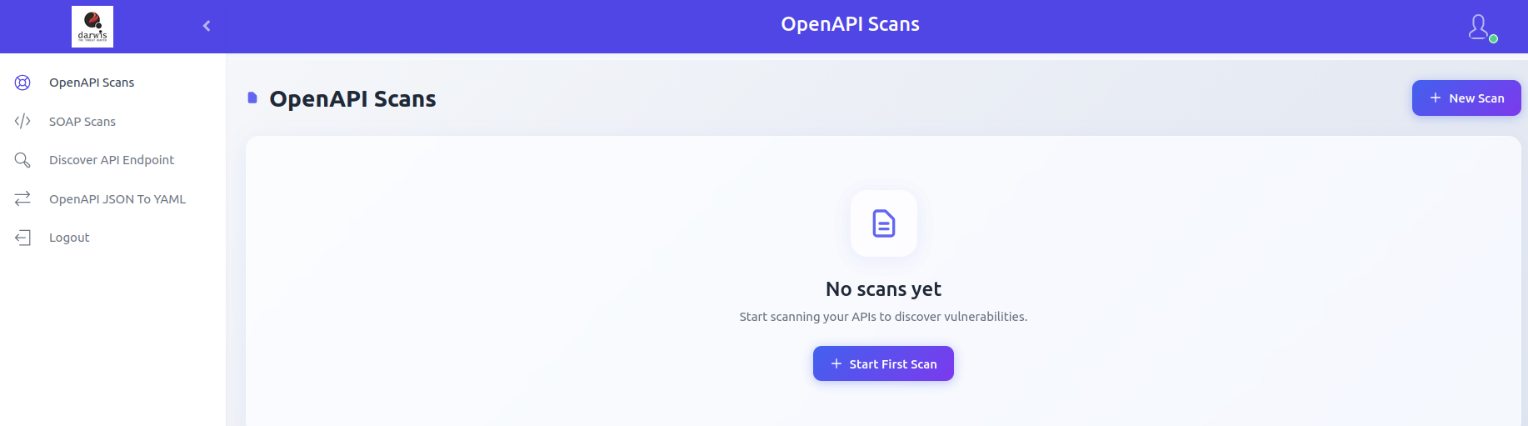

First scan page

Select your OpenAPI file by clicking Click to upload or by dragging and dropping it.

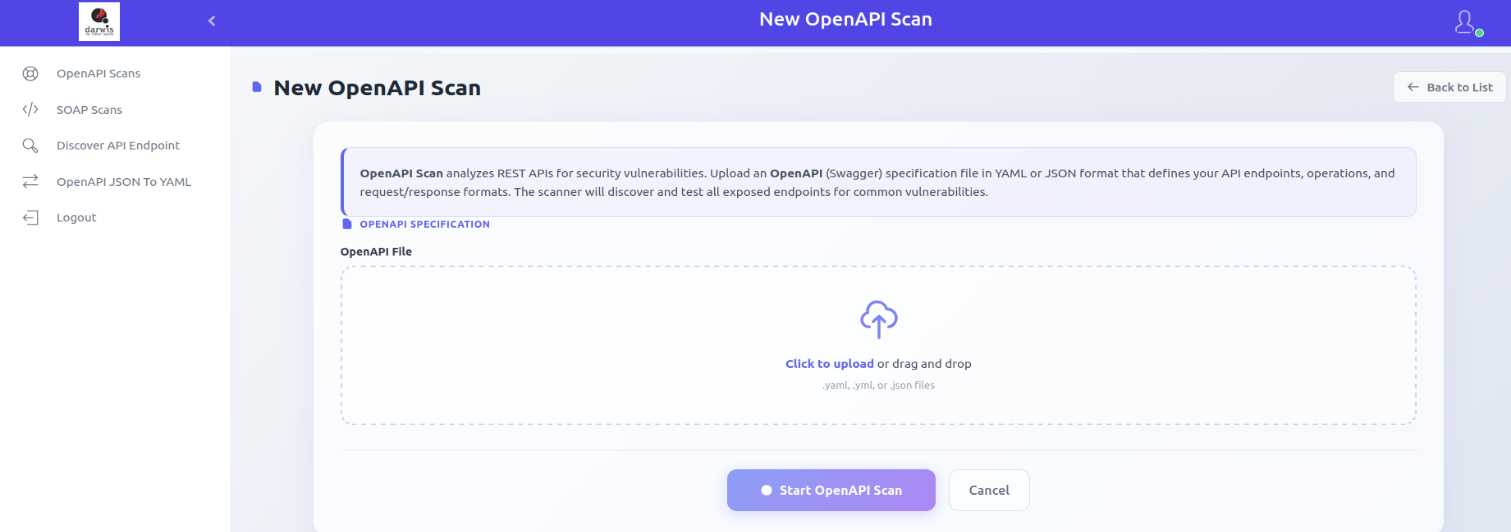

New scan form

Unauthenticated Scan

Tests API endpoints without authentication credentials, simulating an anonymous external user.

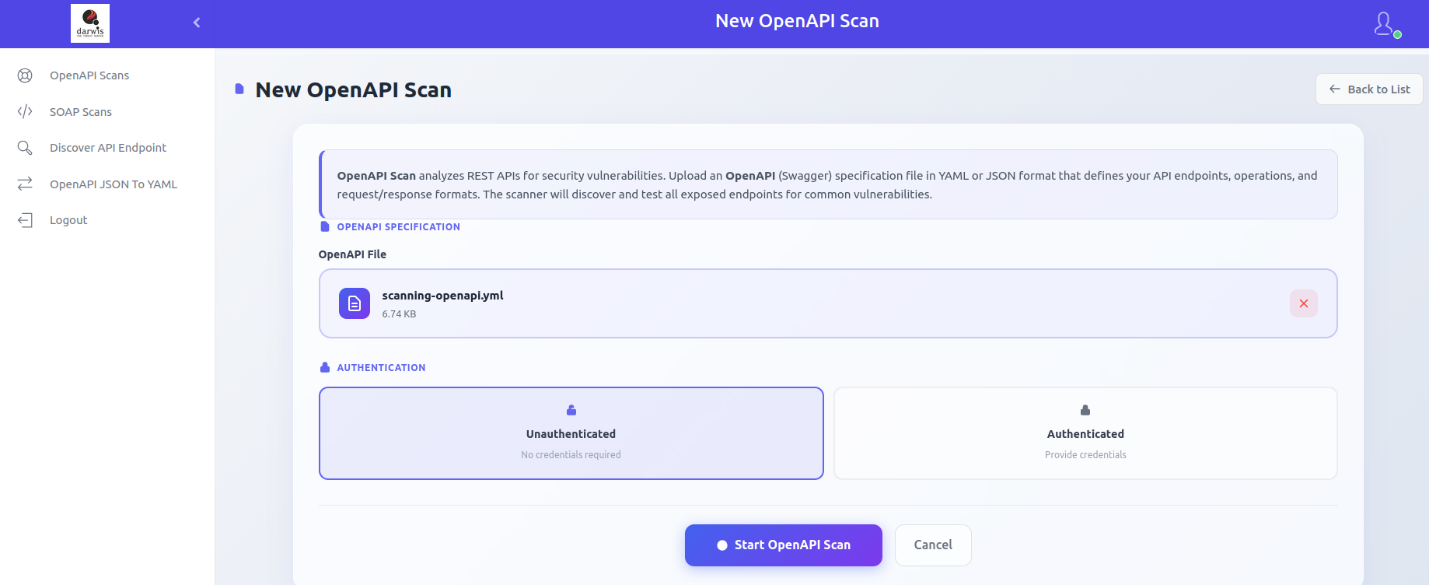

Unauthenticated scan

Authenticated Scan

Tests API endpoints using valid credentials. Supported authentication methods:

Basic Authentication - Username and password
Bearer Token - Authorization token
API Key - Custom API key header

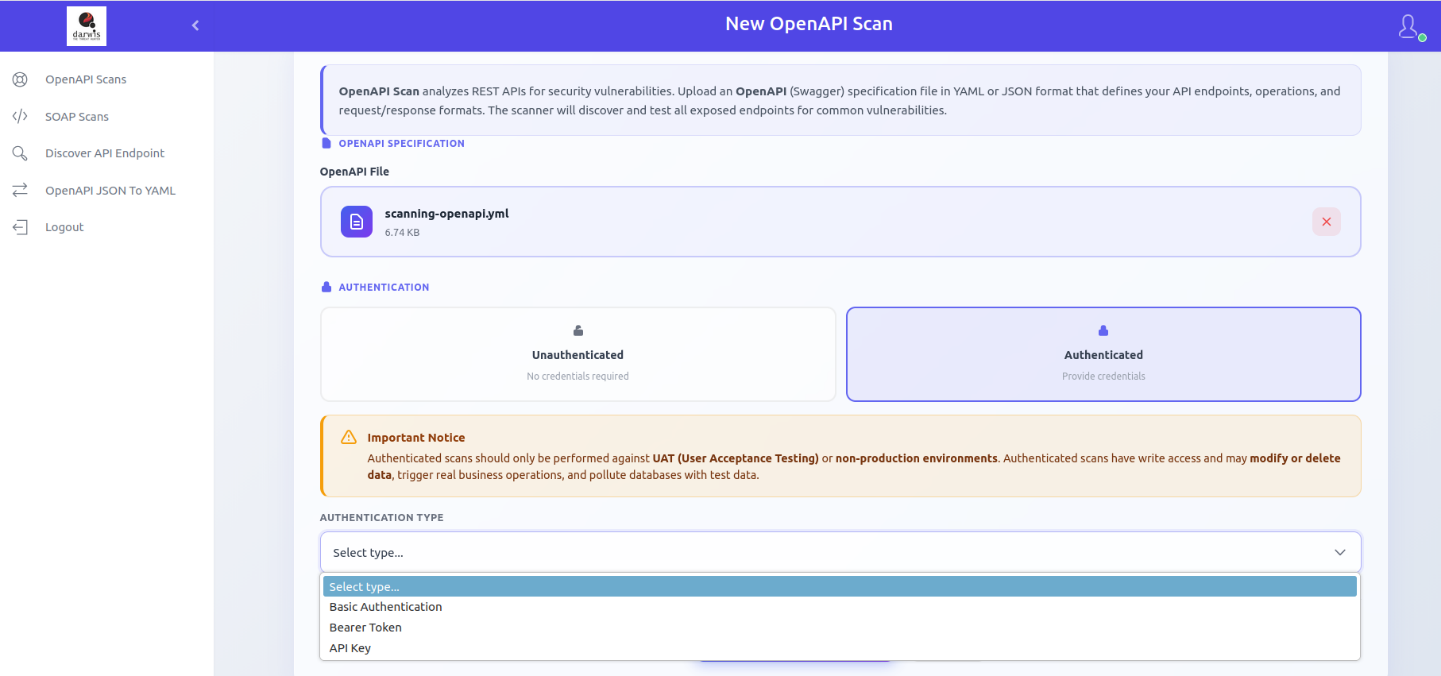

Authenticated scan

Warning

Only run authenticated scans on UAT or non-production environments. Authenticated scans may have write access and can modify or delete data, trigger real business actions (emails, payments), and pollute databases with test data.

After configuring the scan, click Start OpenAPI Scan.

Note

Scans are queued and run sequentially. If other scans are pending, the new scan will start after they complete. If this is the first scan, it starts immediately.

Viewing Scans

Click OpenAPI Scans in the sidebar to view all scans.

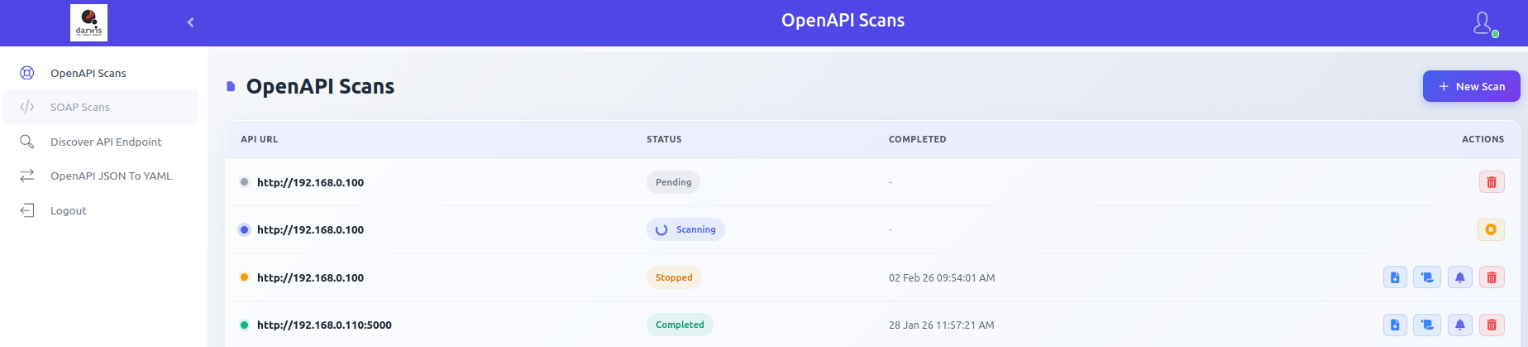

Scan list

Each row shows:

Column	Description
API URL	The API endpoint being scanned
Status	Current scan state (see below)
Completed	Date and time the scan finished
Actions	Report, Error Logs, View Results, Delete

Scan Statuses

Status	Meaning
Pending	Waiting for other scans to complete
Scanning	Currently in progress
Completed	Finished with report generated
Failed	Did not complete due to an error
Unreachable	Target URL cannot be accessed from the server
Stopped	Manually stopped by user

Stopping a Scan

Click the Stop icon on a running scan to stop it. Partial results will be generated.

Stop scan

Report

Available after scan completion. The report includes:

Overall CVSS score and severity
Executive summary with key findings, risk assessment, and recommendations
CVE and CVSS metrics
Remediation guidance and references

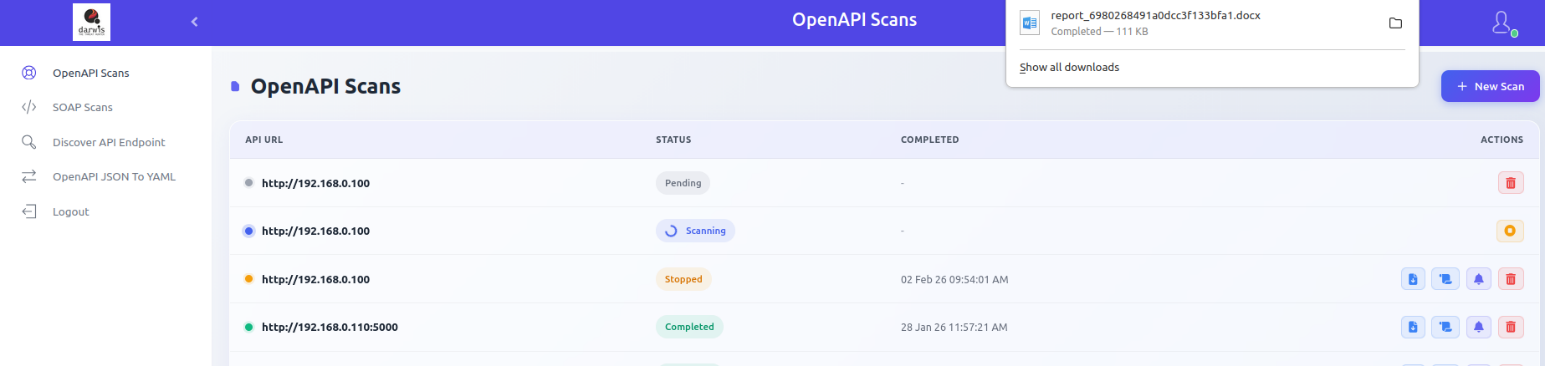

Report

Error Logs

During scanning, the API Scanner fuzzes the target API. If the server returns 5xx errors, the requests and responses are captured in a downloadable file.

Error logs
